Description
CalEasy is a full-featured, Calibration Executive software package that supports the verification and calibration of Marvin Test Solutions instruments. The software is intended for use by users that prefer to perform in-house calibration and verification for their Marvin Test Solutions instruments. By calibrating or verifying the instrument in-house, the time and cost associated with returning an instrument to Marvin Test Solutions for calibration service can be eliminated or reduced.
CalEasy is also used internally by Marvin Test Solutions production to perform initial calibration and to recalibrate the instrument when received for service. This ensures that user and factory based calibration performance is similar. Depending on the specific instrument, standards instrumentation supported for calibration / verification includes a DMM, and a frequency standards module. Some modules require the use of matrix switch card.
CalEasy's driver architecture supports the use of alternate standards instrumentation as well. New standards drivers can be developed using external development environments that can support the creation of DLLs.
Features
CalEasy uses instrument standards to perform calibration and calibration verification. CalEasy’s instrument drivers are called Standards and are interchangeable - allowing the user to employ different instruments from different manufacturers. To provide interchangeability, CalEasy uses a DLL with a predefined instrument interface (functions/API) for each driver type. Each calibration program requires certain functions and capabilities to perform calibration and for each function, the user must supply a DLL that supports the required functional interface. If you choose to use your own instrument, you can create a DLL driver for your standard instrument and configure CalEasy to use your driver. New drivers can be written using the ATEasy software development environment or with any other development environment including C/C++, Visual Basic, LabView or any other language that supports the creation of DLLs. CalEasy is supplied with samples for several instrument drivers created in ATEasy.
CalEasy supports several calibration run modes:
- Verify only: In this mode no calibration is done. The instrument is only verified to its original specification and the result is printed to a test log.
- Verify and Calibrate if required: In this mode verification is performed and if required (the verification task failed) the instrument is calibrated. If calibration is successful the instrument’s non-volatile memory is modified with the new calibration values and a calibration certificate is generated. Alternately, if the verification is OK the instrument’s non-volatile memory is modified with the new calibration date but no new calibration values are written to the instrument and a certificate is generated.
- Calibrate Always: In this mode no initial verification is performed. The calibration task is performed and the certificate is generated upon successful calibration
Applications
- Verification of Marvin Test Solutions instruments
- Re-calibration of Marvin Test Solutions instruments
Supported Instruments
- GX1034
- GX1110
- GX1120
- GX1164
- GX1632e
- GX1649
- GX1838
- GX2065
- GX3104
- GX3116e
- GX3348
- GX3722
- GX3748
- GX3788
- GX5055
- GX5295
- GX5296
- GX5960 series (GX5961/GX5964)
- GTX2200 Series
The following screenshots show the various features and capabilities of CalEasy:

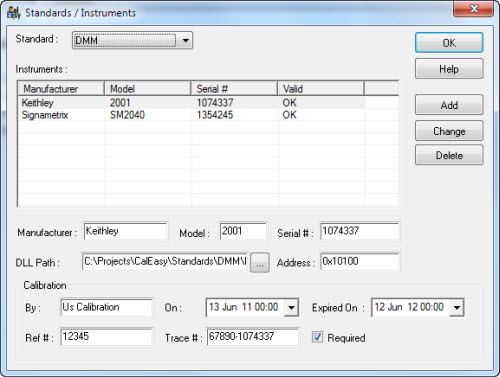

Setup of Standards Instruments in CalEasy
Each instrument standard is recorded by CalEasy, providing trace-ability of the standards instruments.

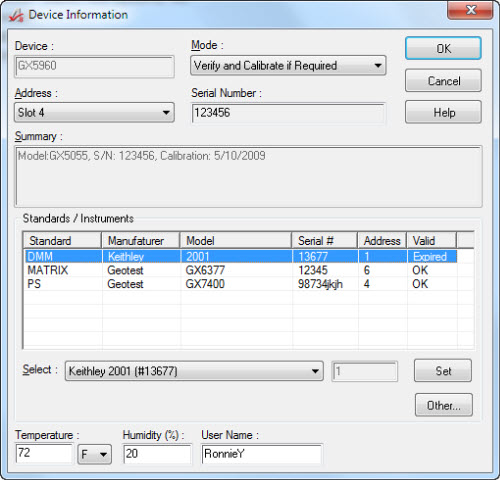

Selecting the Instrument, Run Mode and Configuration
When CalEasy is started, the user selects the device to calibrate, the run mode, and the standards instruments required for the calibration or verification program.

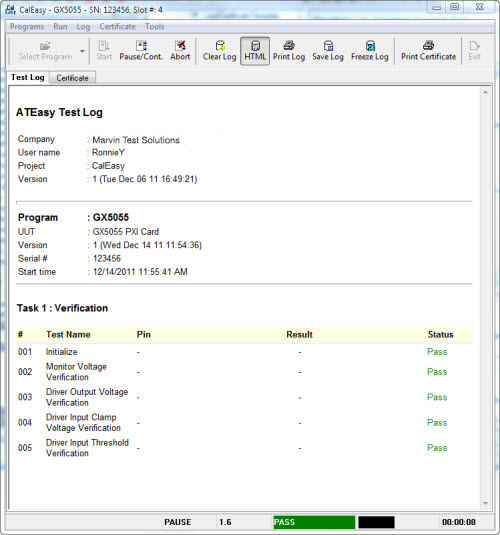

CalEasy Test Log
While verification or calibration is running CalEasy displays a test log that can be automatically saved or printed.

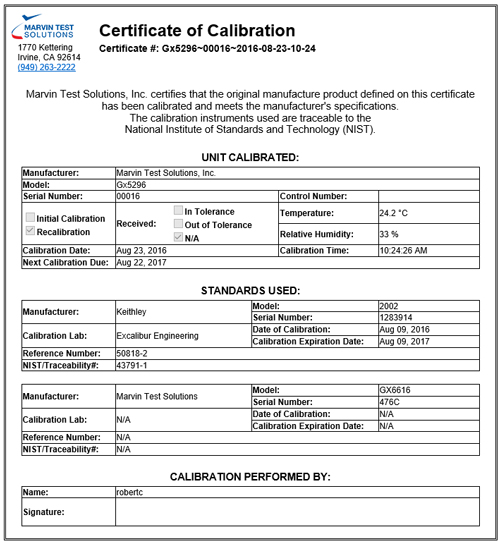

CalEasy Calibration Certificate
The calibration certificate is saved or printed automatically upon successful calibration. You can customize the certificate to have your own logo or layout.
CalEasy Series Specifications
| CalEasy - Verification and Calibration Executive Software |
|---|
| Compatibility | Windows XP (SP3)-Windows 10 (32/64 bit)
ATEasy free run-time (see the CalEasy ReadMe.txt or User's Guide for required version) |
| Supported Calibration of Marvin Test Solutions Instrumentation | GTX2210, GTX2220, GTX2230 - 3U PXI, Timer/Counters
GX1034; Precision Reference Standards PXI Card
GX1110; 3U PXI, One Channel, arbitrary waveform function generator
GX1120; 3U PXI, Two Channel, arbitrary waveform function generator
GX1164; 3U PXI, Programmable Resistor
GX1632e: 3U PXIe, Analog Output / Arbitrary Waveform Generator
GX1649; 3U PXI, analog output/arbitrary waveform generator
GX1838; 3U PXI, Precision Multi-Channel DC Source
GX2065; 3U PXI, 6½ Digit DMM / digitizer
GX3104; 3U PXI, 4 channels SMU
GX3116e; 3U PXIe, 16 Channels DPS/SMU
GX3348; 6U PXI, Multi-Channel Analog I/O
GX3722 3U PXI, Multi-Function I/O
GX3748; 3U PXI, Threshold comparator
GX3788 3U PXI, Multi-function FPGA module
GX5055; 6U PXI, 32 channel DIO
GX5295; 3U PXI, 32 channel DIO
GX5296; 3U PXI, 32 channel DIO
GX5961/GX5964; 6U PXI, 32 & 16 channel DIO |
| Test Modes | Verify Only, Verify and Calibrate if Required, Calibrate Only |
| Verification Log Data File Formats | Text and HTML |
| Certification Documentation | Standard template, can be customized |
| License | Single machine software license |
Note: Specifications are subject to change without notice.
