Description

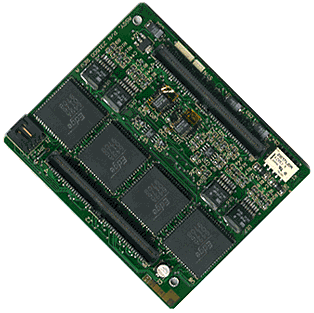

The GT5930 programmable level I/O module eliminates the need to create custom interface circuits. The GT5930 module interfaces between the GT5150 and GT50-DIO TTL environment and the variable custom levels at the UUT. The GT5930 is a plug-in unit, and can be mounted on the GT5150 or the GT5900 I/O module carrier card. The GT5930 provides 32 channels of programmable level translation outputs combined with programmable level threshold inputs.
Architecture
The GT5930 employs the EDGE649 octal pin driver/receiver to provide programmable output and threshold levels common to all I/O channels. In addition to high and low I/O voltage levels, the logic threshold is fully programmable via three on-board DAC controlled variable power supplies. The 11V driver output and receiver input range allows a direct interface to TTL, ECL, CMOS (3 V, 5 V, and 8 V), and custom level circuitry.
Programming
Programming of the GT5930 Module is performed via the host. Programmable functions include:
- High and low I/O voltage levels
- Common threshold level
- Signal termination enable/disable
- I/O data direction
- Tri-state control
Applications
- IC testing
- Custom input and output levels
- Process control
GT5930 Specifications
| Level Translator Module |
|---|
| I/O Channels per Module | 32 bi-directional (Software Programmable Direction) |
| Terminations | 4 SIP sockets for User installation (Software Programmable Enable) |
| Driver/Receiver Type | EDGE649 |
| Output Voltage Swing | 0 V (min)
11 V (max) |
| DC Driver Output Current | -15/100 mA (min)
+15/100 mA (max) |
| Output Impedance | 3 Ω (min)
8 Ω (typ)
2 Ω (max) |
| Pin Capacitance | 20 pF |
| Vhigh Range | 0 V (min)
11 V (max) |
| Vlow Range | -3 V (min)
8 V (max) |
| Receiver Threshold Voltage | -2.9 V (min)
9.5 V (max) |
| Driver Headroom | Driver High to Vlow : 3.0 V
Driver Low to Vhigh 2.5 V |
| Digital Control/Data I/O |
|---|
| Output Level | High: 4.6 V (min)
Low: 0.42 V (max) |
| Input Level | High: 2.0 V (min)
Low: 0.8 V (max) |
| Input Capacitance | 5 pF |
| Power | at 5 VDC : 0.4 A
at -5 VDC : 0.5 / 3 A
at +12 VDC : 3 A |
| Maximum Operating Frequency | 50 MHz |
| General |
|---|
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Size | 4.40" x 3.40" |
| Weight | 70 g |
Note: Specifications are subject to change without notice.
