Description

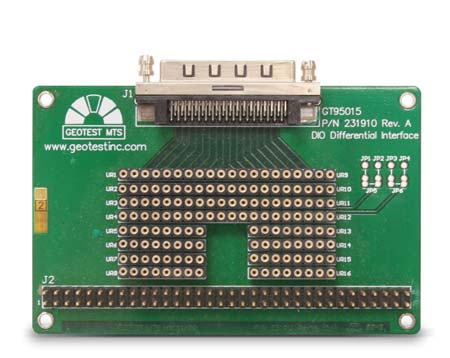

Connector Interface for Gx5xxx/GX3xxx, SCSI to 100 Mil Grid, Differential
Features
The GT95015 contains a 68-pin SCSI interface to 100 mil, 68-pin grid interface; and pull-up/pull-down connections (user supplied pull-ups). The GT95015 is compatible with GX505, GX5150, and GC5050 modules and supports differential data lines.
Compatible with GX5296, GX5295, GX5293, GX5292/GX5292e, GX5291-50/GX5291-100, GX5280, GX5641, GX5642, GX5733, GX5960 series (not GX5964A), GX5055, GX5050 (with all variants GX5910, GX5930, GX5940, GX5960), GX5731, GX5732, GX5050, GX5150, GX5732, GC5050, GX3500 (all variants GX3501, GX3509, GX3510, GX3540), GX3700/GX3700e, GX3722, GX3788 modules.
Knowledge Base Articles pertaining to GT95015
To guarantee good signal quality in a digital environment, it is important to understand when termination is required and the different methods of terminating a transmission line.
Read more...
This article contains product information for the GT95015 Differential Breakout Adapter Board used with MTS Digital I/O instruments
Read more...
This article contains product information for the GT95014 Single-ended Breakout Adpater Board for the MTS Digital I/O cards
Read more...
Downloads for GT95015
GT95015DS.pdf
Feb 20, 2023
117.01 KB
GT950xxDS.pdf
Mar 1, 2010
version: B
771.43 KB
