Description

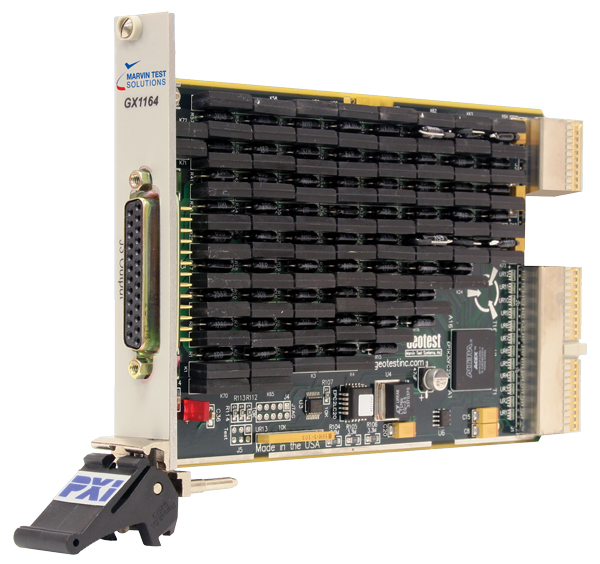

The GX1164 is a 3U PXI programmable resistor module with 4 channels of 16 resistors each or 8 channels of 8 resistors each. The module is available in various resistance ranges and resolutions. When used in the 4-channel configuration, each channel can simulate resistances with the following ranges:
- 0.25 Ω to 16 kΩ
- 0.5 Ω to 32 kΩ
- 1 Ω to 64 kΩ
- 2 Ω to 128 kΩ
- 4 Ω to 256 kΩ
- 8 Ω to 512 kΩ
Features
The GX1164 can be used in multiple configurations including an 8 channel, 4 channel, two channel, 1 channel or 2 channel potentiometer with wiper configuration.
The GX1164 includes an on-board EEPROM that contains calibration data. The EEPROM can also be used to "personalize" the GX1164 for custom resistance ranges and resolutions.
Programming and Software
The board is supplied with the GXPRES software, a software package that includes a virtual instrument panel, and a Windows 32/64-bit DLL driver library and documentation. The virtual panel can be used to interactively program and control the instrument from a window that displays the instrument’s current settings and status. In addition, interface files are provided to support access to programming tools and languages such as ATEasy, LabView, LabView/Real-Time, C/C++, Microsoft Visual Basic®, Delphi, and Pascal. An On-Line help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board.
A separate software package -
GtLinux - provides support for Linux 32/64 operating systems.
Applications
- ATE systems
- Event timing measurements
- Sensor simulation and emulation
- Automated calibration and alignment
GX1164 Series Specifications
| Resistor Channels |
|---|
| Number of Channels | 4 |
| Channel Resistance Ranges | 0.25 Ω to 16 kΩ
0.5 Ω to 32 kΩ
1 Ω to 64 kΩ
2 Ω to 128 kΩ
4 Ω to 256 kΩ
8 Ω to 512 kΩ. |
| Resolution | 0.25 Ω, 16 KΩ range
0.5 Ω, 32 KΩ range
1 Ω, 64 KΩ range
2 Ω, 128 KΩ range
4 Ω, 256 KΩ range
8 Ω, 512 KΩ range |
| Accuracy | ±(1% of programmed value + resolution) |
| Current | 0.5 A (max) per channel |
| Voltage | 200 V (max) per channel |
| Power | 0.5 W (max) per channel |
Power Requirements
3.3 V
5 V |
300 mA (max)
600 mA (max) |
| Physical |
|---|
| Size | 3U PXI |
| Weight | 1 lb |
| Operating Temperature | 0 °C to +55 °C |
Humidity
(Non-Condensing) | 20% to 95% |
| Calibration |
|---|
| Calibration Interval | 2 years |
Note: Specifications are subject to change without notice.
Downloads for GX1164 Series
Datasheet
GX1164DS.pdf
Feb 23, 2023
version: D
281.81 KB
Setup/Package
GxPResReadMe.txt
Sep 26, 2023
version: 2.3.2.0
7.98 KB
Most recent Setup/Package
This Setup / Package file contains all necessary files (including user's guide, help, etc).
Expand
to view And download individual files included in the setup.
Setup/Package
GXPRES.exe
Sep 26, 2023
version: 2.3.2.0
21.28 MB
Most recent Setup/Package
Manual
GX1164UG.pdf
Jan 29, 2016
version: 2.3.1
1.05 MB
On-Line Help
GXPres.chm
Jan 29, 2016
version: 2.3.2.0
478.32 KB
Other
GX1164_Vol.pdf
Apr 10, 2017
366.69 KB
Download our PXI Catalog
Order GX1164 Series and Related Products
To order call
1-888-837-8297
or order on-line via the form below. Prices are specified for
USA
destination orders. Prices are noted in USD.
Import duties, taxes, and charges are not included in the item price.
GX1164 Series
| Product |
Description |
Price. |
Qty |
|
GX1164
|
Programmable Resistor Card. 4 Channels 1 Ohm to 64 KOhm, 1 Ohm Resolution
View required/recommended products
|
$2,393.00
|
*Valid Quantity Required
|
|
GX1164-0.25
|
Programmable Resistor Card. 4 channels 0.25 Ohm to 16 KOhm, 0.25 Ohm Resolution
View required/recommended products
|
$2,665.00
|
*Valid Quantity Required
|
|
GX1164-0.5
|
Programmable Resistor Card. 4 Channels 0.5 Ohms to 32 KOhms, 0.5 Ohm Resolution
View required/recommended products
|
$2,665.00
|
*Valid Quantity Required
|
|
GX1164-2
|
Programmable Resistor Card. 4 Channels 2 Ohm to 128 KOhm, 2 Ohm Resolution
View required/recommended products
|
$2,665.00
|
*Valid Quantity Required
|
|
GX1164-2M
|
Programmable Resistor Card. 4 Channels 2 Ohm to 128 KOhm, 2 Ohm Resolution (Ruggedized and Conformally Coated)
View required/recommended products
|
$5,672.00
|
*Valid Quantity Required
|
|
GX1164-4
|
Programmable Resistor Card. 4 Channels 4 Ohm to 256 KOhm, 4 Ohm Resolution
View required/recommended products
|
$2,665.00
|
*Valid Quantity Required
|
|
GX1164-8
|
Programmable Resistor Card. 4 Channels 8 Ohm to 512 KOhm, 8 Ohm Resolution
View required/recommended products
|
$2,665.00
|
*Valid Quantity Required
|
