Description

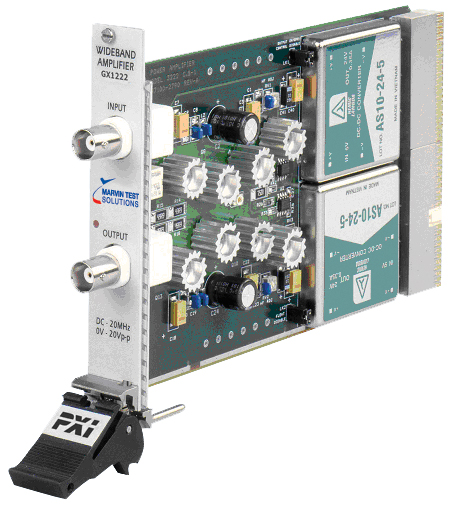

The GX1222 is a 3U single-slot, PXI-based wideband power amplifier used for signal amplification purposes. Offering excellent fidelity, the GX1222 amplifies signals from DC to over 20 MHz with a fixed gain of x10. Custom gains are also available without compromising signal purity and amplifier performance.
Features
On-board DC-DC converters and custom components allow the GX1222 to amplify signals to levels far above standard PXI voltage rails. The GX1222 can amplify input signals to an output of 40 V
PP into a high impedance load, or 20 V
PP into a 50 ohm load.
The GX1222 can be configured with floating input and output connections allowing the amplifier to float up to 250 VDC above ground. The only limiting factor is that both the input and output grounds must connect to the same potential. This capability is very beneficial in applications where the amplifying device should reside at the same ground potential as its source. The floating capability can be added or removed using a simple, user-accessible jumper connection.
The GX1222 requires only power from the PXIbus. No software driver is required to control the module.
Configurations
The GX1222 is available in numerous configurations according to the application’s requirements. The following factory-set options are available (numbers in parentheses represent the standard configuration):
- Gain: 1 through 10 (10)
- Input Impedance: 50 Ω or 1 MΩ (50 Ω)
- Output Impedance: 50 Ω, 75 Ω, or 600 Ω (50 Ω)
- Output Polarity: Normal or Inverted (Inverted)
- Signal Ground: Tied to Ground or Floating (Tied to Ground)
The Signal Ground option is user-selectable via jumpers; all other options must be specified at the time the GX1222 is ordered.
Applications
- Automotive testing
- Avionics testing
- Automatic Test Equipment (ATE)
GX1222 Specifications
| Input Characteristics |
|---|
| Connector | BNC |
| Impedance | 50 Ω, DC coupled |
| Amplitude | 0 to 2 VPP (max), (±2 V) |
| Frequency Range | DC to 20 MHz |
| Output Characteristics |
|---|
| Connector | BNC |
| Impedance | 50 Ω, DC coupled |
| Protection | Short-circuit, 10 seconds |
| Gain | x10, fixed (custom gains available, contact factory) |
| Amplitude | 0 to 20 VPP into 50 ohm; 0 to 40 VPP (±20 V) into high impedance |
| Square Wave Characteristics |
| Transition Time | < 20 ns |
| Aberrations | < 7 % |
| Sine Wave Characteristics |
| 3 db Bandwidth | 50 MHz, at 2 VPP (small signal)
20 MHz at 20 VPP (large signal) |
| Gain Accuracy | ±(2% of full-scale amplitude range + 25 mV),
1 kHz |
| Flatness (10 VPP) | 5% of amplitude to 1 MHz;
10% of amplitude to 20 MHz |
| THD | 0.1%, 10 Hz to 100 kHz |
Harmonics
(10 VPP) | < -60 dBc, 10 HZ to 100 kHz,
< -50 dBc, 100 kHz to 5 MHz,
< -40 dBc, 5 MHz to 20 MHz |
| General |
|---|
| Physical Size | Single-slot, 3U high PXI module |
| Power Requirements | 7.2 W (max) |
| Current Consumption | +5 V, 3.5 A (max) |
| Signal Ground | Floated to the same level as the source,
250 VDC + Peak AC (max) |
| EMC Certification | CE marked |
| Reliability | MTBF per MIL-HDBK-217E, 25 °C, Ground Benign |
| Safety | Designed to meet IEC 1010-1, UL 3111-1, CSA 22.2 #1010 |
| Environmental |
|---|
| Operating Temperature | 0 °C to +55 °C |
| Humidity (Non-Condensing) | RH 80% |
Note: Specifications are subject to change without notice.
