Description

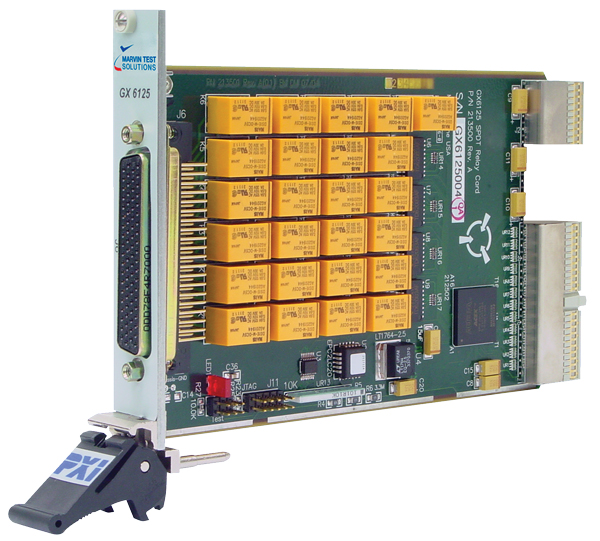

The GX6125 is 3U high density switching card with 25 SPDT Form C relays with a switching power rating of 60 W. The GX6125 is suitable for all test applications requiring general purpose, low level switching.
Features
The GX6125 has 25 SPDT relays and a 78-pin D type connector which makes it easy to connect to the UUT or test system interface. Each of the relays can be latched or unlatched under program control.
Programming and Software
The board is supplied with the GXSW library, a software package that includes a virtual instrument panel, and a Windows 32/64-bit DLL driver library and documentation. The virtual panel can be used to interactively program and control the instrument from a window that displays the instrument’s current settings and status. In addition, interface files are provided to support access to programming tools and languages such as ATEasy, LabView, LabView/Real-Time, C/C++, Microsoft Visual Basic®, Delphi, and Pascal. An On-Line help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board.
A separate software package -
GtLinux - provides support for Linux 32/64 operating systems.
Applications
- Automatic Test Equipment (ATE)
- Data Acquisition
- Process Control Systems
- High-density switching systems
- Factory Automation
GX6125 Specifications
| Contact Specification |
|---|
| Relay Format | 25 SPDT Form C |
| Relay Contact Resistance | 50 mΩ Initial |
Contact Life Rating
at Low Level
at 28 VDC @ 0.5 A |
10x106 (typ)
5x105 (typ) |
| Switchable Voltage, Maximum | 220 VDC / 250 VAC |
| Switchable Current | 2 A |
| Contact Carry Current | 3 A |
| Switching Power Rating | 60 W |
| Operate Time | 3 ms (max) |
| Release Time | 2 ms (max) |
| Power Requirements |
|---|
Power Consumption
+3.3 V
+5 V |
100 mA (max)
65 mA per relay (typ); 1.3 A (max) |
| Environmental |
|---|
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Vibration | 9 G at 10 - 55 Hz |
| Shock 1 / 2 Sine | 10 G for 11 mS |
| Physical |
|---|
| Size | 3U PXI |
| Weight | 220 g |
| Connections | 78-pin D Sub-type connector. Includes mating connector. |
Note: Specifications are subject to change without notice.
