Description
DIOEasy offers test engineers an efficient tool for developing, debugging, and executing digital test vectors for Marvin Test Solutions' GX5050 series, GX5150 series, GX5280 series and GX5291, GX5292, GX5293 and GX5295 dynamic digital instruments.
Digital I/O (DIO) systems are very complex and typically require a substantial amount of programming effort to define data vectors. In order to simplify vector development, Marvin Test Solutions developed Windows-based DIOEasy, providing users with an easy to use interface. Toolbars and menus provide quick access to vector editing and viewing tools.
Architecture
DIOEasy offers two methods for creating and editing digital test vectors:
- Graphical User Interface (GUI) Environment
- Scripting Environment
Vectors can be loaded to and from DIO instrument(s) using the DIO Virtual Panel. After loading the vectors, the user can arm and trigger the instrument for generation / acquisition. Data captured from the boards can be saved to a file and/or loaded to DIOEasy for viewing or for comparison against a previously defined vector data file.
Graphical User Interface

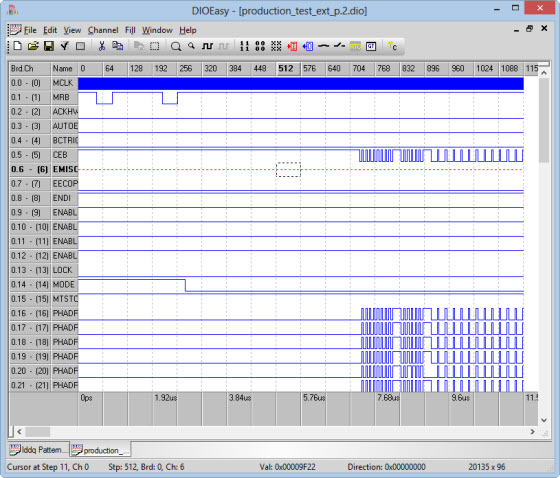

The DIOEasy GUI offers interactive digital vector editing and viewing capabilities. Its generic structure allows it to easily support all of Marvin Test Solutions' dynamic digital instrument hardware configurations. DIOEasy produces vector data files that can be directly used by the digital instrument’s driver (GTDIO). The DIOEasy GUI is similar to a spreadsheet application. Each cell represents the state of a single data bit in a given step. The data bits (channels) are represented by trace lines in the rows of cells, and each step is a column of cells. Data creation, analysis, and editing capabilities include:
- Setting cell attributes
- Direction: In or Out
- Level (state): High, Low or H-Z/ignore
Each attribute is represented by a different color and shape. By simply pointing and clicking the mouse, the user can change the attribute of one cell or a group of cells. DIOEasy supports filling selected ranges of steps and channels with a variety of data patterns including:
- All ones
- All zeros
- Checkerboard
- Invert the current data
- Ramp
- Toggle
- Clock
- Shift/Rotate
- Rotate
- Pseudo random data
- Value set by the user
Other data generation, editing and analysis tools include:
- Vector Importing/Exporting
- Cut/Copy/Insert/Delete for a range of selected steps
- Compare two vectors - differences in any cell are highlighted.
- Vector conversion - DIOEasy can read and convert data vectors from ASCII files generated by other simulators and pattern generators, or you can save the created data file in a simple ASCII format file, with or without commands. The resulting file may then be edited with any text editor.
Supported sequencing commands include branching instructions such as Loop, Jump, Call or commands that assign a given value to a specific register. Most commands can be conditional. Supported branching conditions include EQ, NEQ, GT, LT, etc. Inserting/editing commands are done simply by clicking on any step and then filling in the cells when the Command Properties dialog box appears. Sequence steps can be assigned a label, a command, or both.
Scripting Environment
DIOEasy allows you to create, design and edit vectors using Microsoft Visual Basic Script™ (VBScript)—a popular scripting language. Using the capabilities of VBScript and DIO ActiveX objects, the user can write complex programs that create and modify DIO vectors.
The DIOEasy ActiveX object allows you to:
- Create and change any DIO files
- Setup / configure a digital instrument, i.e. set frequency, trigger mode, etc.
- Create DIO File Blocks that are composed of grouped channels (in any order) and steps
- Fill DIO File, Channels, Steps and Blocks with command and data
- Interact with DIOEasy graphical environment to display and compare DIO vector files using DIOEasy objects such as Window, Application, and more
- Create vector libraries that can be re-used in different steps and files
Applications
- Digital test systems
- Automatic Test Equipment (ATE)
- Mixed signal testers
- Digital emulation systems
- Hybrid Component Test
Order DIOEasy and Related Products
To order call
1-888-837-8297
or order on-line via the form below. Prices are specified for
USA
destination orders. Prices are noted in USD.
Import duties, taxes, and charges are not included in the item price.
DIOEasy
Training
Option
| Product |
Description |
Price, |
Qty |
|
DIOEasy-FIT
|
DIOEasy file import tool kit converts STIL, WGL, VCD/EVCD files to Marvin Test Solutions digital file formats for the GX529x and GX5055 digital I/O cards
|
$2,479.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-UG
|
Upgrade for DIOEasy file import tool kit
|
$1,878.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-S1Y
|
Renew DIOEasy-FIT Subscription and Support (1 Year)
|
$1,114.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-S2Y
|
Renew DIOEasy-FIT Subscription and Support (2 Years)
|
$1,679.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-S3Y
|
Renew DIOEasy-FIT Subscription and Support (3 Years)
|
$2,200.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-EXP6
|
1-year Renewal Expired DIOEasy-FIT Subscription and Support (expired 1 day to 6 months)
|
$1,237.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-EXP24
|
1-year Renewal Expired DIOEasy-FIT Subscription and Support (expired 7 to 24 months)
|
$1,859.00
|
*Valid Quantity Required
|
|
DIOEasy-FIT-SUP
|
1-year Support only for DIOEasy-FIT (no upgrades)
|
$1,114.00
|
*Valid Quantity Required
|
