Description
Marvin Test Solutions' DIOEasy-FIT option offers test engineers a software tool set for importing and converting STIL, WGL, VDC/EVCD files to a Marvin Test Solutions' digital instrument file format. DIOEasy-FIT works in conjunction with Marvin Test Solutions' DIOEasy waveform display and editor software which provides an efficient tool set for developing, debugging, and executing digital test vectors for all MTS dynamic digital instruments.
The Standard Test Interface Language (STIL, IEEE-1450) was developed by a consortium of several test equipment vendors, computer aided engineering (CAE), computer aided design (CAD) and integrated circuit (IC) vendors. The standard provides a common language to transfer digital test data vectors from the design environment to the test environment.
The Waveform Generation Language (WGL), pronounced "wiggle", is a data description language created by Test System Strategies Inc. (TSSI). A WGL file is essentially a text file that contains signal patterns along with timing, diagnostics and other information. The WGL vector formats are commonly used by engineers to test semiconductor devices during the design validation and production test phases of product development. These vectors are generated by electronic design automation (EDA) tools and are used to test a device and verify that its physical implementation matches the results achieved in simulation.
The VCD and EVCD file formats are part of the IEEE-1364 (IEEE Standard for Verilog® Hardware Description Language). Extended VCD (EVCD, IEEE-1364-2001) is a newer version of the VCD file format and supports directional data.
DIOEasy-FIT and the GTDIO library provide the functionality for importing the above files and converting them to a DIO file format which can then be loaded into DIO cards. When importing a file, the user can specify the clock rate for the digital instrument's step rate; (for example the default value of 10 ns (100 MHz) is the fastest clock rate for GX5292 board). If the specified clock rate is too slow and cannot satisfy the timing constrains defined in the imported file (e.g clock > UUT output probing window etc.), an error is returned. The generated DIO file supports both stimulus / response and real-time compare (RTC) modes of operation.
Applications
- Semiconductor test systems
- Digital test systems
- Mixed signal testers
- Digital emulation systems
- Hybrid & SoC Component Test

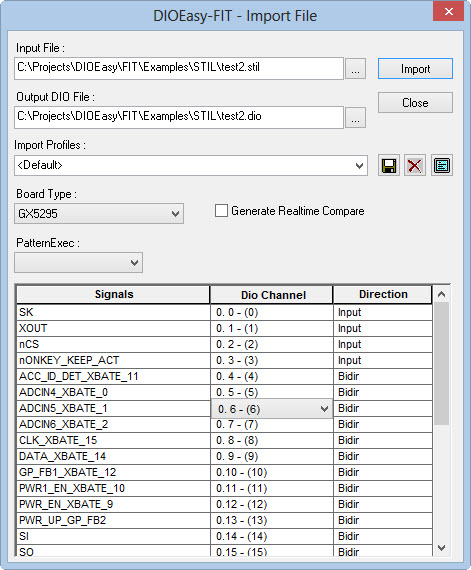

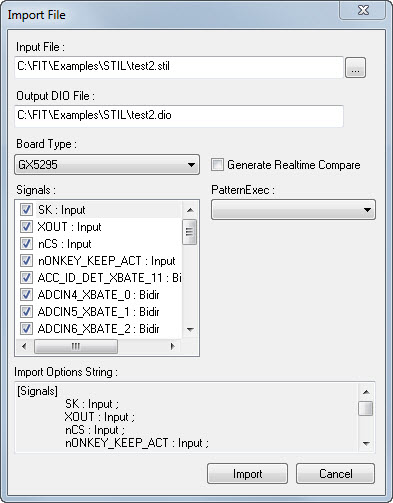

- STIL File Import Dialog:

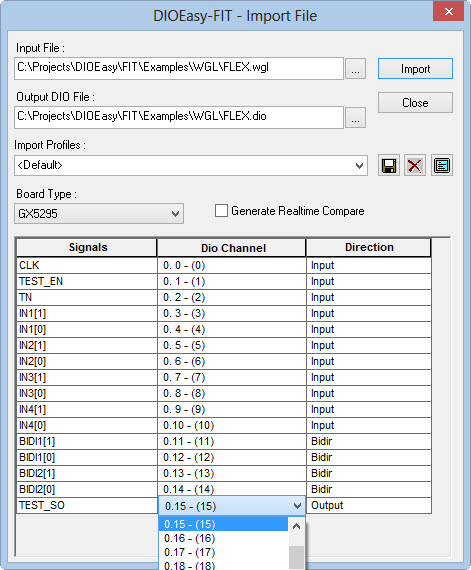

- WGL File Import Dialog:

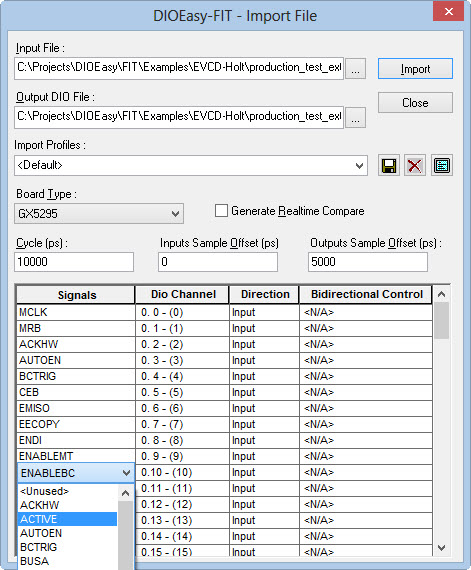

- VCD/EVCD File Import Dialog:
DIOEasy-FIT Specifications
| DIOEasy-FIT - File Import Tool Option for DIOEasy - Features |
|---|
| Supported File Fomats | STIL digital vectors (IEEE-1450, Standard Test Interface Language files),
WGL digital vectors (TSSI Waveform Generation Language files),
VCD/EVCD digital vectors (IEEE-1364-2001, Value Change Dump files) |
| Supported Digital Test Hardware | GX5055, 6U PXI, 32 channel digital instrument
GX529x, 3U PXI, 32 channel digital instrument |
| Supported Digital Channel Width | Up to 512 channels (dependent on hardware configuration) |
| Digital Vector Depth | Up to 64 Mb/channel (dependent on hardware configuration) |
| Compatible Digital Instruments |
|---|
| GX529x Series | GX5292: 3U PXI, 100 MHz, 32 channel dynamic digital instrument. Per channel and per vector drive / sense control.
GX5293: 3U PXI, 200 MHz, 16 channel dynamic digital instrument. Per channel and per vector drive / sense control.
GX5295: 3U PXI, 100 MHz, 32 channel dynamic digital instrument with programmable pin electronics and per pin PMU |
| GX5055 | 6U PXI, 50 MHz, 32 channel dynamic digital instrument. Per channel, -10 to +15 volt programmable driver / sensors |
Note: Specifications are subject to change without notice.
Knowledge Base Articles pertaining to DIOEasy-FIT
DioEasy-FIT and GtDio6x-FIT (File Import Toolkit) allows test engineers to easily import STIL, WGL, VCD, EVCD simulation and Teradyne ATP files to DIO or DIO6x files which are used by MTS digital I/O cards. The FIT when coupled with Marvin’s DIOEasy/GTDIO6x vector development / waveform display tools brings a powerful desktop tool set for debugging and developing digital test vectors for all MTS digital instruments without hardware. This article describes how to use the FIT converter tool to convert files.
Read more...
Using the DIOEasy-FIT toolkit to import and use WGL file
Read more...
