Features

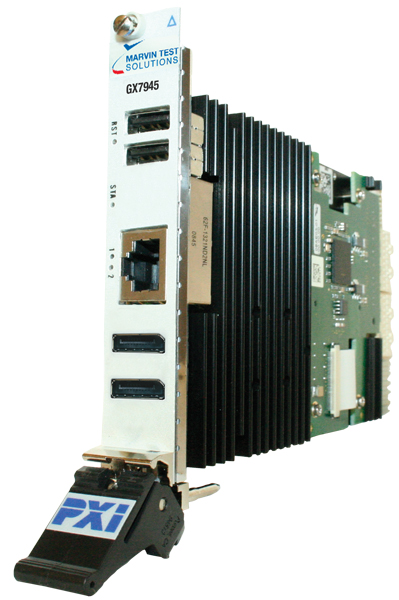

The GX7945 is a single-slot embedded cPCI Express 3U controller for use with Marvin Test Solutions' PXI Express chassis. When combined with the embedded storage peripherals which are integrated into PXIe chassis, the controller / chassis offers a compact, high performance, and integrated test platform solution.
Configuration
The GX7945 controller supports multiple peripherals and I/O interfaces through either the controller’s front panel or the chassis' rear I/O panel. Connection to the DVD-RW drive and hard drive is via the controller’s internal I/O interface. The controller’s front panel I/O is provided with a factory default configuration and is fully functional in any PXI Express or cPCI Express chassis.
The GX7945 embedded system controller adheres to the PXI Express and cPCI Express specifications and is PICMG EXP.0 R1.0 compliant.
Operating System
The standard configuration for the GX7945 Series controller includes Windows 11 Pro, 64-bit operating system.
Applications
- Automatic Test Equipment (ATE)
- Data Acquisition
- Process Control
- Production Test
- Scientific Applications
- Research and Development
- Industrial Systems
- Portable Systems
- GX7200 / GX7600 Chassis
GX7945 Series Specifications
| Processor and Memory |
|---|
| CPU | Intel Core® i7, 4th generation, quad core 64-bit processor
2.4 GHz processor core frequency |
| Main Memory | 16 GB SDRAM (factory configurable only) |
| Boot Flash | 16 MB serial EEROM, 2 KB for factory settings |
| External Interfaces |
|---|
| CompactPCI Express Bus Interface | Compliant with CompactPCI specification PICMG EXP.0 R1.0
4x4 cPCI Express Lanes connected via XJ2 and XJ3 backplane connectors
Two groups: 985 MB/s, Two groups: 500 MB/s |
| Peripheral I/O Ports |
|---|
| USB Interface | Five USB ports:- Two USB 3.0 ports on the front panel
- Three USB 2.0 ports for connection of the rear I/O card
|
| Ethernet Interface | Three Ethernet ports:- (2) 10/100/1000 MB/s Gigabit Ethernet ports (front panel)
- (1) 10/100/1000 MB/s Gigabit Ethernet port (rear panel)
|
| Graphics | Integrated with CPU, resolution: 4096 x 2304 @ 24 Hz
(2) DisplayPort® connectors on front panel |
| Internal Interfaces |
|---|
| Mezzanine Connector | PCIe x1 coniguration; supports mSATA slot, uSD slot, battery |
| Serial ATA | Once channel, via rear I/O, supports transfer rates up to 3 Gb/s |
| Monitor And Control |
|---|
| Watchdog | Software configurable Watchdog timer |
| System Monitor | Thermal monitoring of processor and board temperature |
| Operating System |
|---|
| Operating System | Windows 11 Pro, 64-bit |
| Environmental |
|---|
| Mechanical | 3U, 4HP, CompactPCI/PXI compliant form factor |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity (operating) | 5% to 80% RH, non-condensing
Dew point -5°C - 20°C |
| Relative Humidity (non-operating) | 5% to 95% RH, non-condensing 30°C max |
| Altitude (operating) | -300 m to + 2000 m |
| CE Compliance | EN61010-1
EN61326 |
| Physical |
|---|
| Mechanical | 3U cPCI Express |
| Dimensions | 100 mm x 160 mm |
| Weight | 398 g |
| GX7945 Peripheral Interfaces |
|---|
| Interface | F* | R* | Comments |
| USB | 2 | 3 | Front: USB 3.0; Rear: USB 2.0 |
| Gigabit Ethernet (1000 Base T) | 2 | 1 | |
| Diplay Port | 2 | | 20 pin Display Port receptacle.
Supports DVI/HDMI via an
external adapter |
| SATA 2.0 | | 1 | 1 |
* F = Front, R = Rear, Rear connections are located on the chassis' rear panel
Note: Specifications are subject to change without notice.
