Description

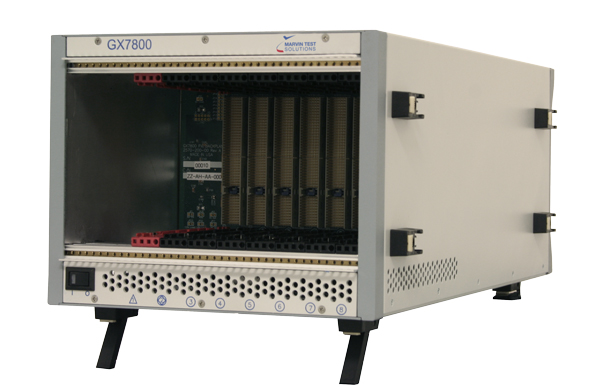

The GX7800 is a compact, 8-slot PXI chassis that can accommodate up to 7 instruments as well as an embedded 3-slot PXI controller or an external bus controller such as a MXI interface. The GX7800’s compact 3U form-factor occupies only 9 x 18 inches of bench space, making it ideal for benchtop or space constrained applications.
Features
System power for the GX7800 Series is provided by a single power supply configuration that provides 450 watts of system power.
Forced-air cooling for the chassis is provided by two 79 CFM fans located under the card cage with a separate fan providing cooling for the system power supply. Two fan speeds provide the user with flexibility to optimize thermal management within the chassis for both low and high power configurations. The chassis’ cooling configuration provides airflow for all module slots per the PXI specification and requires no additional rack space for inlet or outlet air.
Configuration
The eight-slot layout of the GX7800 consists of six PXI-1 slots, one PXI timing slot, and one PXI controller slot which can accept a 3-slot controller. An external 10 MHz PXI clock can be also be supplied to the backplane via a connection on the rear panel of the chassis. Access to the on-board PXI 10 MHz clock is also available on the rear panel of the chassis.
Software
The chassis is supplied with the HW software package which provides a PXI Explorer application that is used to view and configure the PXI system configuration files used by resource manager software.
Applications
- Automatic Test Equipment (ATE)
- Data Acquisition
- Process Control
- Production Test
- Research and Development
- Scientific Applications
- Industrial Systems
GX7800 Series Specifications
| Chassis |
|---|
| Input AC Power | 90 - 264 VAC, 10 A (max), 47-63 Hz |
| Total Available DC System Power | 450 W |
+5 V
+3.3 V
+12 V
-12 V
Note: Total power cannot exceed 450 W | 30 A (max)
30 A (max)
10 A (max)
5 A (max) |
| Weight | 13 lbs |
| Dimensions | 4U (7") H x 8.9" W x 18" D |
| Cooling | Two 79 CFM fans for system cooling. Dedicated 50 CFM fan for power supply cooling. |
| PXI Triggers | Slots: 2 - 8
Number: 8 |
| PXI Star Trigger | Slots: 2 - 8
Dedicated, low skew Star trigger connecting slots 3 - 8 to slot 2, the PXI system timing slot |
| PXI Clock and Synchronization Resources | Integrated 10 MHz clock with an autodetect function. Presence of an external 10 MHz PXI clock will overide the internal 10 MHz clock
10 MHz clock accuracy: ±100 ppm |
| External 10 MHz Clock Input | An external 10 MHz clock source (TTL level) can be provided via a rear panel BNC or via a PXI System Timing Controller |
| 10 MHz Clock Output | 10 MHz output is available via a rear panel BNC connector, TTL compatible level. |
| Slots | 8 Slots (7 instruments max)
1 PXI controller slot
6 PXI slots
1 PXI System Timing slot |
| Environmental |
|---|
Acoustic Noise
(at operator level, 12 inches from front of unit) | Low fan setting (@ 23°C ambient): <40 dBA
High fan setting: 64.6 dBA |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Emissions Compliance | EN55011:1991 Group 1 |
| CE Compliance | EN 61010-1
EN61326 |
Note: Specifications are subject to change without notice.
