Description

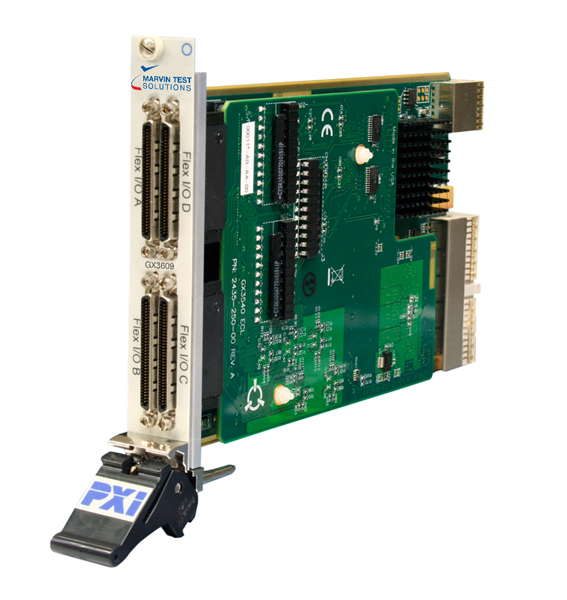

The GX3609 is a 3U PXI FPGA card with 80 TTL differential channels. The GX3609 is comprised of a GX3500 FPGA card and the GX3509, 80 channel, differential TTL expansion card.
Programming and Software
The board is supplied with the GXFPGA library, a software package that includes a virtual instrument panel, and a Windows 32/64-bit DLL driver library and documentation. The virtual panel can be used to interactively program and control the instrument from a window that displays the instrument’s current settings and status. In addition, interface files are provided to support access to programming tools and languages such as ATEasy, LabView, LabView/Real-Time, C/C++, Microsoft Visual Basic®, Delphi, and Pascal. An On-Line help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board.
A separate software package -
GtLinux - provides support for Linux 32/64 operating systems.
Applications
- Automatic Test Equipment (ATE) and Functional Test
- Data Acquisition
- Process Control
- Factory Automation
GX3609 Specifications
| GX3500 FPGA Card with GX3509 Differential TTL Expansion Board |
|---|
| Number of Channels | 80 I/O signals. Direction is configurable by software on a per pin basis |
| Logic Family | Differential TTL, RS-422 & RS-485 compatible |
| Data Rate | 100 Mb/s (max) |
| Driver Output Current | ±60 mA (sink or source) (max) |
| Differential Output Voltage | 1.5 V (min); 6 V (max)
(no load) |
| Receiver Input Current | +20 µA / -100 µA |
| Differential Input Voltage | ±12 V (max) |
| Power On State | All channels are configured as inputs |
| Environmental |
|---|
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity (operating) | 5% to 80% RH, non-condensing
Dew point -5°C - 20°C |
| Relative Humidity (non-operating) | 5% to 95% RH, non-condensing 30°C max |
| Altitude (operating) | Up to 2000 M |
| CE Compliance | EN61010-1
EN61326 |
| Size | 3U PXI |
| Weight | 200 g |
Note: Specifications are subject to change without notice.
