Description

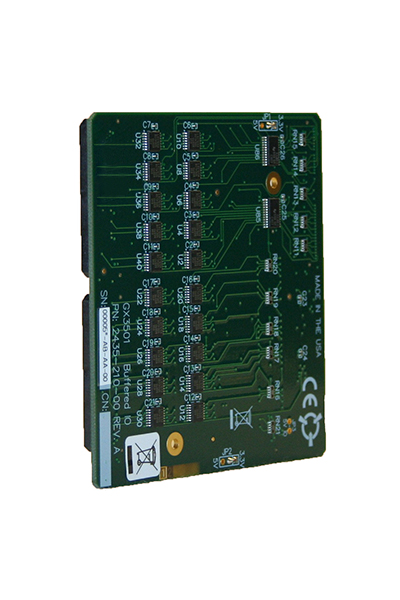

The GX3501 is an 80 channel, TTL buffer expansion card designed specifically for the GX3500 FLexDIO FPGA card. Each group of 40 channels can be configured with an on-board jumper to support TTL of LVTTL logic levels. Each channel can be configured to an input or output under software control. The GX3501 is also available be ordered as a pre-assembled unit with the GX3500 as part number GX3601.
GX3501 Specifications
| GX3501 TTL Buffer Expansion Board |
|---|
| Number of Channels | 80 I/O signals. Direction is configurable by software on a per pin basis |
| Logic Family | TTL or LVTTL, 5 V tolerant inputs;
Each group of 40 channels can be jumper configured to support TTL or LVTTL levels |
| Output Current | ±50 mA, sink or source |
| Input Leakage Current | ±5 µA |
| Power On State | All channels are configured as inputs |
| Input Protection | Overvoltage: -0.5 V to 6.5 V (input) |
Note: Specifications are subject to change without notice.
Downloads for GX3501
GX3500DS.pdf
Jun 9, 2023
version: F
350.79 KB
GX3501DS.pdf
Apr 4, 2023
version: A
210.83 KB
GX3500UG.pdf
Oct 16, 2024
version: 2.4.2.0
3.03 MB
GX35xx_Vol.pdf
Apr 6, 2015
110.98 KB
