Description

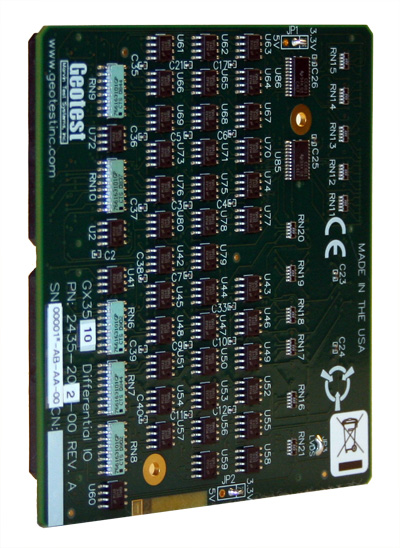

The GX3510 is an 80 channel, mLVDS Buffer expansion board designed specifically for the GX3500 FLexDIO FPGA card.
GX3510 Specifications
| GX3510 MLVDS Expansion Board |
|---|
| Number of Channels | 80 I/O signals
Direction is configurable by software on a per pin basis |
| Logic Family | M- LVDS. Type 2 receiver |
| Data Rate | 200 Mbps (max) |
| Differential Output Voltage | 480 mV (min), 650 mV (max) |
| Differential Input Voltage Threshold | 150 mV (max) (positive going input)
50 mV (max) (negative going input) |
| Absolute Maximum Input Voltage Range | -1.8 V to 4 V |
| Power On State | All channels are configured as inputs |
Note: Specifications are subject to change without notice.
Downloads for GX3510
GX3500DS.pdf
Jun 9, 2023
version: F
350.79 KB
GX3510DS.pdf
Apr 4, 2023
version: A
203.59 KB
GX3500UG.pdf
Oct 16, 2024
version: 2.4.2.0
3.03 MB
GX35xx_Vol.pdf
Apr 6, 2015
110.98 KB
