Description

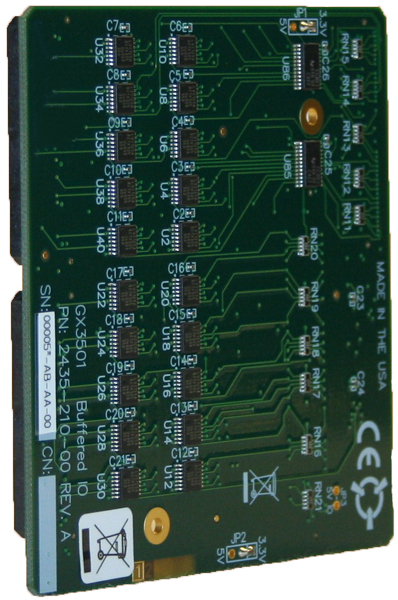

The GX3509 is an 80 channel, differential TTL expansion board designed specifically for the GX3500 FLexDIO FPGA card. Each channel can be configured as an output or input under software control via the GX3500's function calls. The GX3509 can also be orderd pre-assembled with the GX3500 as model number GX3609.
GX3509 Specifications
| GX3509 Differential TTL Expansion Board |
|---|
| Number of Channels | 80 I/O signals. Direction is configurable by software on a per pin basis |
| Logic Family | Differential TTL, RS-422 & RS-485 compatible |
| Data Rate | 100 Mbps (max) |
| Driver Output Current | ±60 mA (sink or source) (max) |
| Differential Output Voltage | 1.5 V (min), 6 V (max) (no load) |
| Receiver Input Current | +20 µA / -100 µA |
| Differential Input Voltage | ±12 V (max) |
| Power On State | All channels are configured as inputs |
Note: Specifications are subject to change without notice.
