80 Channel LVDS Buffer Expansion Board for GX3500

80 channel, LVDS expansion board for the GX3500 FPGA card
Compliant with TIA/EIA-644 devices
Input / Output configurable on a per channel basis
400 Mb/s data rate

click to enlarge

Overview

Specifications

Downloads

Description

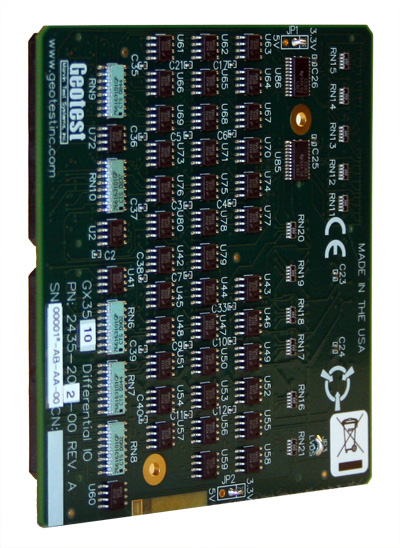

The GX3511 is an 80 channel, LVDS Buffer expansion board designed specifically for the GX3500 FLexDIO FPGA card.
The LVDS logic signals are compliant with TIA/EIA-644 devices.

GX3511 Specifications

GX3511 LVDS Expansion Board
Number of Channels	80 I/O signals Direction is configurable by software on a per pin basis
Logic Family	LVDS. compliant with TIA/EIA-644 devices
Data Rate	400 Mbps (max)
Differential Output Voltage	247 mV (min); 454 mV (max), Rload = 50Ω
Differential Input Voltage Threshold	50 mV (max), positive going input -50 mV (max), negative going input
Absolute Maximum Input Voltage Range	-0.5 V to 4 V
Power on State	All channels are configured as inputs

Note: Specifications are subject to change without notice.

Downloads for GX3511

GX3500DS.pdf

Jun 9, 2023
version: F
350.79 KB

GX3500 Data Sheet

type: Datasheet

GX3510DS.pdf

Apr 4, 2023
version: A
203.59 KB

GX3510 Data Sheet

type: Datasheet

GX3500UG.pdf

Oct 16, 2024
version: 2.4.2.0
3.03 MB

GX35xxUser Guide

type: Manual

GX35xx_Vol.pdf

Apr 6, 2015

110.98 KB

GX35xx Declaration of Volatility

type: Other

Download our PXI Catalog

Products similar to GX3511

GX3501 - 80 Channel TTL Buffer Expansion Board for GX3500
GX3509 - 80 Channel Differential TTL Expansion Board for GX3500
GX3510 - 80 Channel mLVDS Buffer Expansion Board for GX3500
GX3540 - 40 Channel ECL Expansion Board for GX3500

Order GX3511 and Related Products

To order call 1-888-837-8297 or order on-line via the form below. Prices are specified for USA destination orders. Prices are noted in USD. Import duties, taxes, and charges are not included in the item price.

GX3511

Product	Description	Price.	Qty
GX3511	FPGA Flex Daughter Card: 80 Channel LVDS Logic Compatible View required/recommended products	$3,550.00	*Valid Quantity Required

Required

Product	Description	Price,	Qty
GX3500	Flex DIO FPGA Card	$4,499.00	*Valid Quantity Required
GX3500-M	Flex DIO FPGA Card (Ruggedized and conformal coated)	$6,961.00	*Valid Quantity Required
