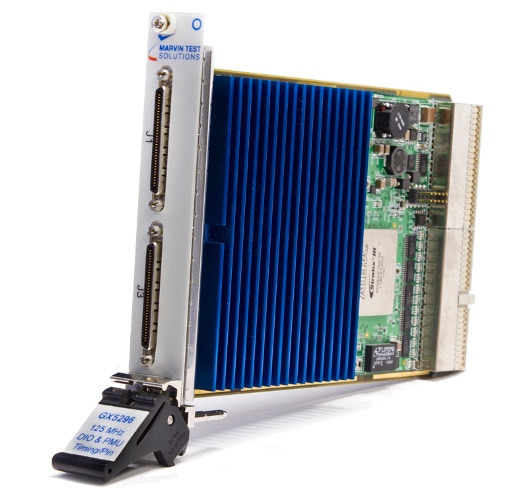

GX5296

Description

The GX5296 offers advanced dynamic digital I/O performance and capabilities in a single slot, 3U PXI format. The 32-channel, GX5296 features timing per pin, multiple time sets, data formatting, and an advanced sequencer – providing users with the capability to emulate and test complex digital busses for system, board or device test applications. Offering sub-nanosecond edge placement resolution per pin and a PMU per pin, the GX5296 has the ability to perform both DC and AC parametric testing. Each digital channel can be individually programmed for a drive hi, drive lo, sense hi, sense lo, and load value (with commutation voltage level). In addition, each channel offers a parametric measurement unit (PMU) providing users with the capability to perform parallel DC measurements on the DUT (device under test).

The GX5296 supports deep pattern memory by offering 64 Mb per pin of vector memory with dynamic per pin direction control and with test rates up to 125 MHz. The board supports both Stimulus / Response and Real-time Compare modes of operation, allowing the user to maximize test throughput for go / no-go testing of components and UUTs that require deep memory test patterns. The single board design supports both master and slave functionality without the use of add-on modules.

Features

The GX5296’s timing generator supports 8 timing phases and 4 windows for drive and sense timing respectively. Each phase and window is comprised of two timing edges - assert / de-assert and an open window / close window respectively. Timing resolution of 250 ps is supported for each of these edges. The 8 phases and 4 windows are available for mapping edge timing to a specific channel. Up to 64 unique time set values can be defined for each phase / window and are selectable on a per sequence step basis. Additionally, six data formats are supported - NR (no return), R0, R1, RHiZ, and RC (Return to Complement), RSC (Return Surround with Complement). Data formatting is assigned on a per channel basis.

Pin electronic resources are independent on a per channel basis and include a full-featured PMU for DC characterization of DUTs. The PMU can operate in the force voltage / measure current or force current / measure voltage mode. Additionally, 4 additional pin electronics resources are available for use as timing and/or control resources – providing programmable drive and sense levels from -2 to +7 volts.

The GX5296 employs a PLL based, clock system which offers programmable vector clock rates up to 125 MHz. In addition, a clocks per pattern (CPP) divider  (1 to 256) is available, providing additional clocking and edge placement flexibility. External input and output synchronization signals are also supported, providing the ability to synchronize the GX5296 to external events or time bases.

The GX5296 offers a full-featured sequencer. Capabilities include conditional jump, unconditional jump, subroutine jump, or looping. Additionally, the sequencer has the ability to handshake with external signals in order to synchronize with a UUT. Handshaking settings can be selected on a per step basis and include Handshake Pause and Resume resources. Total sequencer memory size is 4096 steps with each step capable of accessing 1 to 64 M of vector memory.

Software

The GX5296 is supplied with graphical vector development / waveform display tools (GtDIO6xEasy) as well as a virtual instrument panel, 32 / 64-bit DLL driver libraries, and documentation. The virtual panel can be used to interactively control and monitor the instrument from a window that displays the instrument’s current settings and status. In addition, ICEAsy Test Suite is available, which provides a comprehensive set of software tools - facilitating the development and debugging of test programs for semiconductor devices.  The suite includes I-V curve and Shmoo plot tools for analyzing a device's DC and AC characteristics, a library of device test development tools for creating test programs and characterizing devices, file import tools for  importing and converting STIL, WGL, VDC/EVCD, and ATP digital file formats as well as GtDIO6xEasy. The complete suite of tools interfaces seemlessly with Marvin Test Solutions' ATEasy, a test executive and test development evironment.

Applications

• Semiconductor test
• ASICs testing
• A/D and D/A testing
• Video acquisition / playback applications
• High speed, bi-directional bus testing / emulation

GX5296 Specifications

Channel I/O Specifications
Number of Data I/O Channels	32 per card
Channel Direction Control	Input or Output per vector, per channel
Drive and Sense Programmable Voltage References	32 Drive Hi / Drive Lo 32 Sense Hi / Sense Lo
Drive Voltage Level	Level: Drive Hi: -2 V to +7 V, Drive Lo: -2 V to +7 V
	Accuracy: ±20 mV (max)
	Resolution: 16 bits, 250 uV
	Leakage Current ±15 nA (max)
Output Impedance	50 O (typ)
Drive Current	±35 mA (max)
Rise / Fall Times	0.5 ns typical for a 2 V pulse
Channel Skew	160 ps, typical between the same card 320 ps max, after calibration, for all channels within a domain (Drive and sense)
Sense Voltage	Range: Sense Hi: -1.75 V to +7 V, Sense Lo: -1.75 V to +7 V
	Threshold Accuracy: ±25 mV
	Resolution: 16 bits, 250 uV
Input Leakage Current	±15 nA (max)
Minimum Data Sense Pulse Width	4ns
Voltage Termination (VTT)	Range: -2 V to + 7 V
	Accuracy: +/- 20 mV
	Resolution: 16 bits, 250 uV
Pull-Up / Pull-Down Current Source / Sink	Range: +24 mA to -20 mA, programmable on a per channel basis
	Accuracy: ±124 uA
	Resolution: 16 bits
Voltage Commutation (Vcomm)	Range: -2V to +7V, programmable on a per channel basis Note: VTT and Vcomm share a common voltage source, only one mode supported per channel.
	Accuracy: ±20 mV (typ)
	Resolution: 16 bits, 250 uV
Vector Memory	64 Mb per channel
Data Output Formats (Assigned per channel)	Drive Hi, Drive Lo, Hi-Z Formatted Data: No return, Return to 1, Return to 0, Return to Hi-Z, Return to complement, Surround by complement
Drive Data Timing (Assigned per channel)	Data assert / de-assert based on Phases 0-7
Capture Mode Timing (Assigned per channel)	Windows 0 -3 Mask Capture on open edge of Window Capture on closing edge of Window
Test Modes
Drive / Sense Modes	Output: Drive Hi, Drive Lo, Hi-Z Sense: Sense Lo, Sense Hi Drive / Expect:   -DriveHi Expect Lo   -Drive Lo Expect Hi   -Drive Hi Expect Hi   -Drive Lo Expect Lo Expect valid level Expect invalid level Repeat previous opcode Invert previous opcode
Record Modes	Real Time Compare:   -Record errors for inputs with Good 1 & Good 0   -Record errors for inputs with only a Good 1   -Pass/ fail condition based on expect / actual data compare Record Data:   -Record raw data based on NOT a Good 0   -Record raw data based on a Good 1   -Record raw data, Good 1 & Good 0
Error Memory	Record data and address for compare errors 1K deep error memory
Timing
Master Clock (T0) Frequency Range	1 MHz (min); 125 MHz (max)
T0 Clock Period Programming Resolution	250 ps
Accuracy	±0.02% of programmed value + accuracy of reference clock (PXI 10 MHz or external reference clock)
Jitter	50 ps RMS, typical
Reference	PXI 10 MHz clock or XClk (external clock) input
Clocks per Vector Range	Programmable per sequence step, 1 to 256 T0 clock period must be > 50 ns if programming per seq step
Phase and Window Timing	8 phases, 4 windows, user assigned to DIO channels
Timing Set Sequence Control	64 Timing Sets supporting 8 Phases, 4 Windows, and 4 K sequence steps.
Phase and Window Timing Resolution	250 ps
Minimum Phase / Window Pulse Width; Assert / Return Or Open / Close	4 ns
Phase / Window Reference	Phase: System (T0) or Pattern Clock (selectable per Seq Step) Window: Pattern clock only
Status and Control Signals
Input Trigger Functions	Pause - Resume (2), Halt, Run
Trigger Source	PXI Triggers 0-7 Trigger is edge or level programmable
Sync / Clock Output Functions	Sync (2), Sequence Active, Seq Flag , Failed Vector, Valid Pass, T0 Clk, Vector Clock, Seq Clock, PXI 10 MHz, , Record Active, Counter Active , GoSub Active, Subroutine Rtn, Return Flag, Last Vector, Channel Compare
Sync / Clock Outputs	Timing / Sync / Trigger Connector (J3) - (4) Aux pin electronic channels (bidirectional); supported functions: Sequence Active, T0 Clk, Vector Clock, Seq Clock, PXI 10 MHz, Failed Vector, Sequence Active, Counter Active, Last Vector, GoSub Active - PXI Triggers 0-7; supported functions: Seq Flag, Sync (2), Channel Compare, Sequence Active, Failed Vector, Valid Pass
Sequencer
Commands	Jump, Conditional Jump, Loop, Call Subroutine, Return, Pause, Halt
Loop Counters	Single loop counter Loop count range: 1 – 64K or continuous
Sequencer Memory	4096 Steps
Phase Trigger	T0_CLK (System Clock) or PAT_CLK (Vector clock)
Window Trigger	PAT_CLK (Vector clock)
Patterns per Sequence Step	1 to 64M
Sequence Loop	1 to 1M, continuous
Jump	Conditional / Unconditional
Jump Conditions	Error True, Sequence Timeout True, Signal Level (High / Low), Signal Edge (Rising / Falling)
Auxiliary I/O Channels
Number Channels	4, can be used for timing / control functions or for static I/O
Drive Voltage Level	Level: Drive Hi: -2 V to +7 V, Drive Lo: -2 V to +7 V
	Accuracy: ±20 mV (max)
	Resolution: 16 bits, 250 uV
	Leakage Current ±15 nA (max)
Output Impedance	50 O (typ)
Drive Current	±35 mA (max)
Rise / Fall Times	0.5 ns typical for a 2 V pulse
Sense Voltage	Range: Sense Hi: -1.75 V to +7 V, Sense Lo: -1.75 V to +7 V
	Threshold Accuracy: ±25 mV
	Resolution: 16 bits, 250 uV
Input Leakage Current	±15 nA (max)
Voltage Termination (VTT)	Range: -2 V to +7 V
	Accuracy: ±20 mV
	Resolution: 16 bits, 250 uV
Pull-Up / Pull-Down Current Source / Sink	Range: +24 to -20 mA, programmable on a per channel basis
	Accuracy: ±124 uA
	Resolution: 16 bits
Commutation Voltage (VComm)	Range: -2V to +7V, programmable on a per channel basis Note: VTT and Vcomm share a common voltage source, only one mode supported per channel
	Accuracy (typ): ±20mV
	Resolution: 16 bits, 250 uV
Digital I/O Parametric Measurement Unit (PMU)
Number of Parametric Measurement Units	32, one per channel
Configurations	Force Voltage/Measure Current (FVMI) Force Current/Measure Voltage (FIMV) Force Voltage/Measure Voltage (FVMV) Force Current/Measure Current (FIMI)
Force Voltage	Range: -1.5 V to +7 V
	Accuracy: ±20 mV (max)
	Resolution: 16 bits, 250 uV
Force Current	Ranges: ±32 mA, ±8 mA, ±2 mA, ±512 uA, ±128 uA, ±32 uA, ±8 uA, ±2 uA FS
	Accuracy, Test conditions: Vcomm @ 0 volts: ±120 uA, -16 mA to +32 mA, 32 mA range ±40 uA, -6 mA to +8 mA range, 8 mA range ±5uA, 2 mA range
	Accuracy (typ), Vcomm: +1.75 V to +7 V: ±120 uA, -16 mA to -32 mA ±40 uA,-6 mA to -8 mA
	Resolution: 16 bits
Current Measurement	Accuracy (60 Measurements / Sec), Test conditions: Vcomm @ 0 volts: ±120 uA, -16 mA to +32 mA, 32 mA range ±40 uA, -6 mA to +8 mA range, 8 mA range ±5uA, 2 mA range ±2.4 uA, 512 uA range ±600 nA, 128 uA range ±160 nA, 32 uA range ±80 nA, 8 uA range ±20 nA, 2 uA range
	Accuracy (typ), Vcomm: +1.75 V to +7 V: ±120 uA, -16 mA to -32 mA ±40 uA,-6 mA to -8 mA
	Resolution: 16 bits
	Reading per sec 1 (Aperture 1 Sec)-10,000 (Aperture 0.1 mSec)
Voltage Measurement	Range: -1.5 V to +7 V
	Accuracy : ±2.5 mV, measurement rate < 50 measurements/sec
	Reading per sec: 1 (Aperture 1 Sec)-10,000 (Aperture 0.1 mSec)
PMU Commutation Voltage	Range: VCom Lo: -2 V to +5 V, VCom Hi: 0 V to +7 V
	Accuracy: ±50 mV
	Resolution: 16 bits
Pass / Fail PMU Voltage Comparators	Hi and Lo Voltage Threshold Range: -1.75 V to +7 V Accuracy: ±25 mV
Pass / Fail PMU Current Comparators	Hi and Lo Current Threshold Range: -32 mA to +32 mA Accuracy @ Vcomm+ 0V: ±200 uA, -16 mA to +32 mA range ±120 uA, -6 mA to +8 mA range ±12 uA, 2 mA range ±4.8 uA, 512 uA range ±2.4  uA, 128 uA range ±200 nA, 32 uA range ±120 nA, 8 uA range ±80 nA, 2 uA range Accuracy (typ),Vcomm: +1.75 V to +7 V ±200 uA, -16 mA to -32 mA ±120 uA,-6 mA to -8 mA
Auxiliary I/O Parametric Measurement Unit (PMU)
Number of Parametric Measurement Units	4, one per auxiliary channel
Configurations	Force Voltage/Measure Current (FVMI) Force Current/Measure Voltage (FIMV) Force Voltage/Measure Voltage (FVMV) Force Current/Measure Current (FIMI)
Force Voltage	Range: -1.5 V to +7 V
	Accuracy: ±20 mV (max)
	Resolution: 16 bits, 250 uV
Force Current	Ranges : ±32 mA, ±8 mA, ±2 mA FS
	Accuracy, Test conditions: Vcomm @ 0 volts: ±120 uA, -16 mA to +32 mA, 32 mA range ±40 uA, -6 mA to +8 mA range, 8 mA range ±5uA, 2 mA range
	Accuracy (typ), Vcomm: +1.75 V to +7 V: ±120 uA, -16 mA to -32 mA ±40 uA,-6 mA to -8 mA
	Resolution: 16 bits
Current Measurement	Accuracy (60 Measurements / Sec), Test conditions: Vcomm @ 0 volts: ±120 uA, -16 mA to +32 mA, 32 mA range ±40 uA, -6 mA to +8 mA range, 8 mA range ±5uA, 2 mA range
	Accuracy (typ), Vcomm: +1.75 V to +7 V: ±120 uA, -16 mA to -32 mA ±40 uA,-6 mA to -8 mA
	Resolution: 16 bits
	Reading per sec 1 (Aperture 1 Sec)-10,000 (Aperture 0.1 mSec)
Voltage Measurement	Range: -1.5 V to +7 V
	Accuracy: ±3.0 mV (measurement rate < 50 measurements / sec)
	Reading per sec: 1 (Aperture 1 Sec)-10,000 (Aperture 0.1 mSec)
PMU Commutation Voltage	Range: VCom Lo: -2 V to +5 V, VCom Hi: 0 V to +7 V
	Accuracy: ±50 mV
	Resolution: 16 bits
Pass / Fail PMU Voltage Comparators	Hi and Lo Voltage Threshold Range: -1.75 V to +7 V Accuracy: ±25 mV
Pass / Fail PMU Current Comparators	Hi and Lo Current Threshold Range: -32 mA V to +32 mA Accuracy @ Vcomm= 0V: ±200 uA, -16 mA to +32 mA range ±120 uA, -6 mA to +8 mA range ±12 uA, 2 mA range Accuracy (typ), @Vcomm= +1.75 V to +7 V: ±200 uA, -16 mA to -32 mA ±120 uA,-6 mA to -8 mA
Power (Idle and Initialized)
+3.3 VDC	4.8 A
+5 VDC	1.48 A
+12 VDC	0.25 A
Environmental
Operating Temperature	0 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Size	3U PXI
Weight	200 g
Front Panel Connectors
J1	Digital I/O Signals, 68-pin VHD connector
J3	Timing & Control Signals, 68-pin VHD connector
Calibration
Calibration Interval	1 year

Note: Specifications are subject to change without notice.
